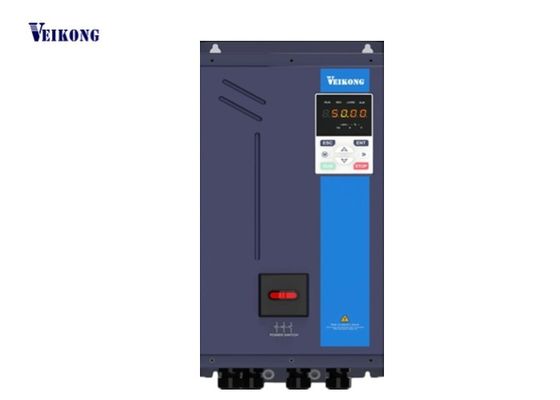

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems

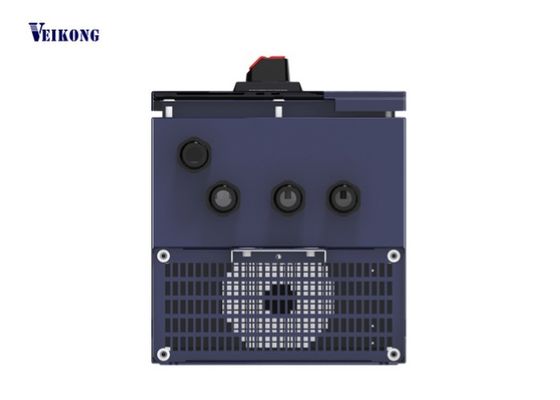

  • All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems

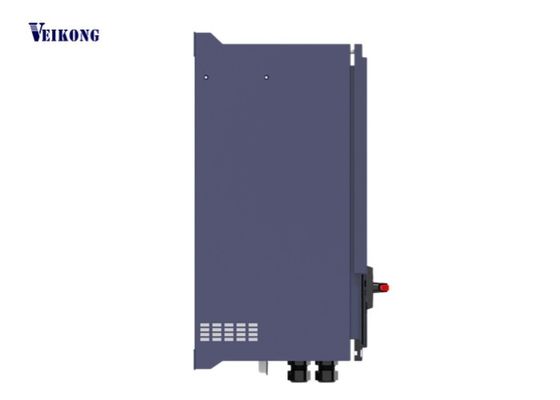

  • All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems
  • All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems
Tempat asal Cina
Nama merek VEIKONG
Sertifikasi CE, Rosh
Nomor model VFD510-PV
Kuantitas min Order 1
Kemasan rincian Kertas Kertas dan Kotak Kayu
Waktu pengiriman 3 hari, bergantung pada jumlah pesanan
Syarat-syarat pembayaran Western Union, T/T, l/c
Menyediakan kemampuan 15000 pcs per bulan
Detail produk
Nama Produk All-in-one MPPT Solar Pump Drive | Perlindungan IP65 untuk Sistem Pompa 4KW - 11kW Frekuensi output 50Hz 60Hz
Aplikasi Irigasi Pertanian dan sistem pemompaan tenaga surya Arus keluaran Bergantung pada model
Tipe output 3 fase, TRIPLE Berat Bergantung pada model
Tingkat perlindungan IP55 Merek Veikong
OEM Mendukung Menyorot Inverter pompa air matahari IP55, inverter pompa air surya 60Hz, inverter matahari 11kw 11hz 11kw
Deskripsi Produk

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems 0

Technical Specification

220V

380V

Max input DC voltage

450V

810V

DC voltage range

150~450VDC

300~810VDC

Normal working DC voltage

260V-400V

400V-650V

Recommended input mppt voltage

330V

550V

MPPT efficiency

>99%

Rated output voltage

1/3-phase 220VAC

3-phase 380-480VAC

Output frequency range

50/60Hz

Max efficiency of the machine

99%

Ambient temperature range

-10 °C~50 °C, derating if the temperature is above 40 °C

Cooling method

Air cooling

Protection degree

IP55

Altitude

Below 1000m; above 1% for every additional 100m.

Standard

CE/ROHS

Product Application

All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems 1


All-in-One MPPT Solar Pump Drive | IP55 Protection for 4kW - 11kW Pump Systems 2


Q&A


1. Does the product need to set a lot of parameters?

No, it doesn't. The inverter has a self-adaptive and self-learning function. It is automatic start and stop, you can press Run key to start, or you just wait for 600S then it will automatically start

2. Could it replace my previous PV pumping inverter?
Yes, of course. Selecting inverter model according to the rated voltage, current and power of the water pump. A bit more is better. Then take off the old one and put ours on, the system will work.

3. How to design solar PV water pump system?
Key point: the rated VOC and vmp and power of the PV Array need to match the input range of the inverter. If need, we will provide technical support online.


4. How to make the water pump system work without sunshine?

Usually, solar PV water pump system can meet the needs of pumping water.
If there is no sunshine, the system will not work. But out inverter could also support AC input. So, connect the power grid or diesel power generation to the inverter, the pumping system will work. If necessary, keep switch and interface locations during the system design time.

5. How to use terminal control with external switch to run and stop solar pump inverter ?
(Terminal control): As the default control mode is keypad control, First set P00.06=1 and use a wire or switch to connect com and DI1, When the switch is closed, the drive run, when the switch is open, the drive stop

6. How to use a float in the water tank to stop the pump if the tank is full?
Use float switch to short DI 1 and com.

7. Use level probe in the well for protection against dry running
Set P24.12=1 and set P24.13 and P24.14 and P23.21

8. How to set minimum frequency 25hz and maximum 50HZ?
Set P47.05=25HZ and 47.06 to some time and 47.07 to some time

9. If pump is 60HZ frequency, how to set max frequency?
Notice: If your motor rated frequency is 60HZ you should set P01.06=P01.08=P11.05=60HZ.

10. How to achieve Automatic start after stop?
Our solar pump inverter is automatic start and stop with our special software
