VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility
  • VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility
  • VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility
Tempat asal CINA
Nama merek VEIKONG
Sertifikasi IEC CE
Nomor model PKS580
Kuantitas min Order 5
Kemasan rincian Karton atau kasing kayu
Waktu pengiriman Bergantung pada kuantitas
Syarat-syarat pembayaran Western Union, T/T, D/P, L/C, Moneygram
Menyediakan kemampuan 15490 per/ bulan
Detail produk
Nama PKS tingkat tinggi Kontrol posisi Position Command Supports Internal Position, Pulse Position Input, CANopen Position Command, Ethe
Rentang daya 0,75kw-710kw Frekuensi HINGGA 3000HZ
Voltase 220V 380V OEM Mendukung
Menyorot Drive frekuensi variabel veikong, drive frekuensi variabel OEM, VFD tingkat tinggi OEM
Deskripsi Produk

VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility


1. Product Description:

Veikong releases VFD580 series with all-round functions

The newly released VFD580 series from Veikong is a one-stop solution for motor control. Developed to be compatible with both IM and PMSM motors, this series is equipped with all-round functions for better performance. It offers excellent safety features with the inclusion of the STO function for providing protection to the operator and equipment.

The VFD580 series offers a great deal of flexibility in terms of communication with the addition of communication options such as RS485, Canopen, and Profinet. It is suitable for different special applications, for example, the fly shear. This feature further adds to the versatility of the device.

In conclusion, the VFD580 series is an optimal choice for industrial applications that require reliability, safety, and ease-of-use. The multiple features packed into this series ensure maximum efficiency when it comes to motor control.


VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility 0


2. Series description


Model Rated output current Applicable motor Size Brake unit
Three phase :400V
VFD580/586-2R2-T4B 5.6A 2.2KW


SIZE A






Standard

built-in
VFD580/586-4R0-T4B 9.4A 4.0KW
VFD580/586-5R5-T4B 13.0A 5.5KW
VFD580/586-7R5-T4B 17.0A 7.5KW SIZE B
VFD580/586-011-T4B 25.0A 11KW
VFD580/586-015-T4B 32.0A 15KW


SIZE C
VFD580/586-018-T4B 37.0A 18.5KW
VFD580/586-022-T4B 45.0A 22KW
VFD580/586-030-T4B 60.0A 30KW SIZE D
VFD580/586-037-T4B 75.0A 37KW
VFD580/586-045-T4 (B) 90.0A 45KW SIZE E

Optional

built-in
VFD580/586-055-T4 (B) 110.0A 55KW
VFD580/586-075-T4 (B) 152.0A 75KW SIZE F

Optional

built-in
VFD580/586-090-T4 (B) 176.0A 90KW
VFD580/586-110-T4 210.0A 110KW


SIZE G





Circumscribed
VFD580/586-132-T4 253.0A 132KW
VFD580/586-160-T4 304.0A 160KW SIZE H
VFD580/586-200-T4 380.0A 200KW

SIZE I
VFD580/586-220-T4 426.0A 220KW
VFD580/586-250-T4 465.0A 250KW
VFD580/586-280-T4 520.0A 280KW SIZE J
VFD580/586-315-T4 585.0A 315KW



Model Rated output current Applicable motor Size Brake unit
Single phase/Three phase :220V
VFD580/586-0R7-S2B (T2B) 5.6A 0.75KW


SIZE A






Standard

built-in
VFD580/586-1R5-S2B (T2B) 8.0A 1.5KW
VFD580/586-2R2-S2B (T2B) 10.6A 2.2KW
VFD580/586-4R0-S2B (T2B) 17.0A 4.0KW SIZE B
VFD580/586-5R5-S2B (T2B) 25.0A 5.5KW
VFD580/586-7R5-S2B (T2B) 32.0A 7.5KW SIZE C
VFD580/586-011-S2B (T2B) 45.0A 11KW
VFD580/586-015-S2B (T2B) 60.0A 15KW SIZE D
VFD580/586-018-S2B (T2B) 75.0A 18.5KW

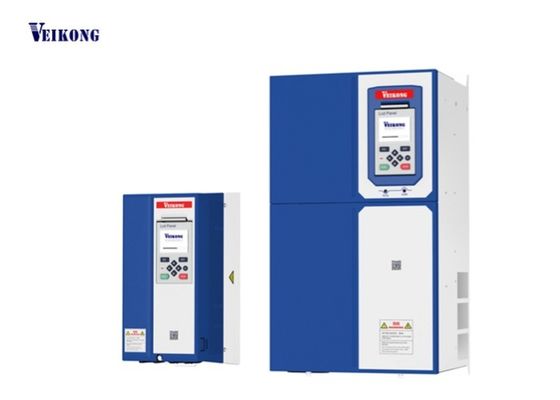

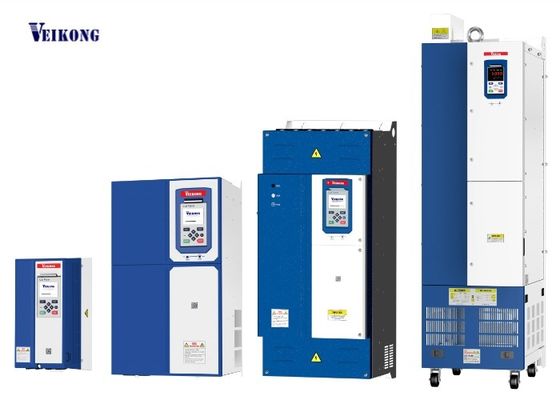

3. VFD580 product images

VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility 1

VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility 2

4. Wide applications

VEIKONG VFD580 General Purpose AC Drive: High-Performance Motor Control with Enhanced Compatibility 3

High Level VFD

Dual-Encoder Drive

Universal Motor Drive
