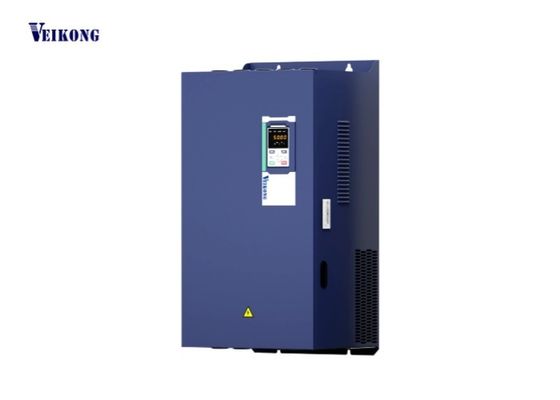

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications.

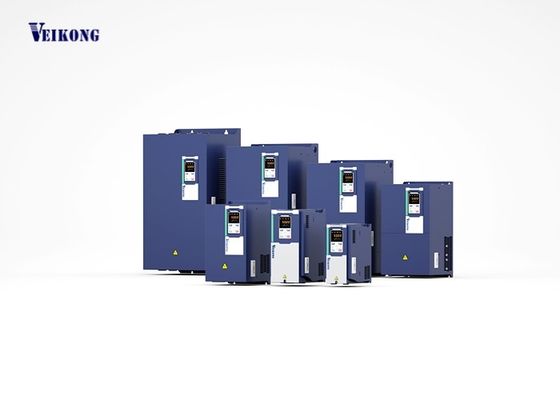

  • Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications.
  • Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications.
Tempat asal CINA
Nama merek VEIKONG
Sertifikasi CE IEC
Nomor model VFD500
Kuantitas min Order 20 pcs
Kemasan rincian karton kertas di bawah 45kw, mulai dari kotak kayu 45kw untuk pengepakan
Waktu pengiriman 3-8 hari kerja
Syarat-syarat pembayaran MoneyGram, Western Union, T/T, D/P, L/C.
Menyediakan kemampuan 15000 per/bulan
Detail produk
Jaminan 24 bulan Warna Biru tua dan putih
Frekuensi 50Hz/60Hz Efisiensi Lebih dari 99%
Voltase 380V-480V Nama Produk Inverter Frekuensi Variabel
GPRS Mendukung Mode kontrol SVC VC dan VF
Modus kontrol motorik Mode kecepatan dan mode torsi Menyorot Tiga fase, 380-480V AC input, 50/60Hz Output VFD untuk aplikasi kipas draft.
Deskripsi Produk

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications.


1.Who We Are?


Shenzhen Veikong Electric CO.,Ltd. a high-tech enterprise which has been specializing in researching, manufacturing and trading high, medium and low voltage inverter, providing our clients with integrated system solutions. We have professional R&D and devoted management team with more than 20 years' experience of theoretical research, product development and quality management.Veikong also is one of the first independent AC drives company in China. We adopt SPWM, sensorless vector control and vector and torque control technology in our VFD series inverters, which has reached the international advanced standard. The products can directly replace and be equivalent of Europe and the United States, Japan and other brands, providing customers with a powerful technical support. We have achieved popularity and qualification in VFD industry. Quality is the life of enterprise.



2.Real applications

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications. 0

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications. 1

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications. 2

3.General Technical Data

Type  Termina symbol Terminal name Terminal function description
Analog input voltage +10V Input voltage 10.10V±1%
Analog input voltage +10V Input voltage Maximum output current:10mA,it provides power supply to external potentiometer with resistance range of:1KΩ~51KΩ
Analog input voltage GND Ananog ground Internal isolation from COM
Analog input voltage

AI1

 Analog input1 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI1 Analog input1 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI1 Analog input1 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input voltage AI2 Analog input 2 Input voltage:0~10V:Impedance 22KΩ,Maximum input voltage
Analog input voltage AI2 Analog input 2 Input current:0~20mA:Impedance 500Ω,Maximum input current
Analog input voltage AI2 Analog input 2 Through the jumper switch AI1 0 ~ 10V and 0 ~ 20mA analog input switch, the factory default voltage input
Analog input AO1 Analog output 1 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO1 Analog output 1 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO1 Analog output 1 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output
Analog input AO2 Analog output 2 Output voltage:0~10V:Impedance ≥10KΩ
Analog input AO2 Analog output 2 Output current:0~20mA:Impedance 200Ω~500Ω
Analog input AO2 Analog output 2 Through the jumper switch AO1 0 ~ 10V and 0 ~ 20mA analog output switching, the factory default voltage output.
Analog input GND Ananog ground Internal isolation from COM


4.Real time Technical Support For Better After Sale Service

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications. 3

Three-Phase, 380-480V AC Input, 50/60Hz Output VFD for Draft Fan Applications. 4
