The 132kW VFD580 variable frequency drive features an integrated DC reactor.
| Tempat asal | CINA |
|---|---|
| Nama merek | VEIKONG |
| Sertifikasi | CE IEC |
| Nomor model | PKS580 |
| Kuantitas min Order | 2 pcs |
| Kemasan rincian | karton kertas di bawah 45kw, mulai dari kotak kayu 45kw untuk pengepakan |
| Waktu pengiriman | 7-8 hari kerja berdasarkan kuantitas |
| Syarat-syarat pembayaran | MoneyGram, Western Union, T/T, D/P, D/A, L/C. |
| Menyediakan kemampuan | 15490 per/ bulan |
Detail produk
| Kekuatan | 132kw | Frekuensi | 50/60Hz |
|---|---|---|---|
| Warna | biru muda dan putih | Voltase | 380V/220V |
| Jaminan | 24 bulan | OEM | OEM |
| Bahan | Plastik dan Mental | Menyorot | Reaktor DC bawaan VFD580, drive frekuensi variabel 132kW, drive frekuensi variabel reaktor DC |
Deskripsi Produk
1. Main features of VEIKONG VFD580
1. Support AC asynchronous and permanent magnet synchronous motor, servo motor, supports speed, torque and servo position control mode.
2. 15kw and above equipped with built-in DC reactor as standard.
3. 37kw and below equipped with built-in braking unit as standard, 45kw-90kw is optional, starting from 110kw is external.
4. 90kw and below equipped with brake circuit short-circuit protection function.
5. Support MODBUS-RTU, CAN-Open, ProfiNet. Stronger mode VFD586 supports EtherCat.
6. Support 6 kinds of PG card(Incremental PG card, rotary, sin-cos pg card, ABZ close loop pg card, UVW pg card and Tamagawa absolute pg card.
7. Standard motor temperature sensor interface, support PT100, PT1000, KTY84.
8. Support Spanish LCD keypad, it is easy to monitor and operator.
9. Support optional STO function.
2. Series description
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Three phase :400V | ||||
| VFD580/586-2R2-T4B | 5.6A | 2.2KW |
SIZE A |
Standard built-in |
| VFD580/586-4R0-T4B | 9.4A | 4.0KW | ||
| VFD580/586-5R5-T4B | 13.0A | 5.5KW | ||
| VFD580/586-7R5-T4B | 17.0A | 7.5KW | SIZE B | |
| VFD580/586-011-T4B | 25.0A | 11KW | ||
| VFD580/586-015-T4B | 32.0A | 15KW |
SIZE C |
|
| VFD580/586-018-T4B | 37.0A | 18.5KW | ||
| VFD580/586-022-T4B | 45.0A | 22KW | ||
| VFD580/586-030-T4B | 60.0A | 30KW | SIZE D | |
| VFD580/586-037-T4B | 75.0A | 37KW | ||
| VFD580/586-045-T4 (B) | 90.0A | 45KW | SIZE E |
Optional built-in |
| VFD580/586-055-T4 (B) | 110.0A | 55KW | ||
| VFD580/586-075-T4 (B) | 152.0A | 75KW | SIZE F |
Optional built-in |
| VFD580/586-090-T4 (B) | 176.0A | 90KW | ||
| VFD580/586-110-T4 | 210.0A | 110KW |
SIZE G |
Circumscribed |
| VFD580/586-132-T4 | 253.0A | 132KW | ||
| VFD580/586-160-T4 | 304.0A | 160KW | SIZE H | |
| VFD580/586-200-T4 | 380.0A | 200KW |
SIZE I |
|
| VFD580/586-220-T4 | 426.0A | 220KW | ||
| VFD580/586-250-T4 | 465.0A | 250KW | ||
| VFD580/586-280-T4 | 520.0A | 280KW | SIZE J | |
| VFD580/586-315-T4 | 585.0A | 315KW | ||
| Model | Rated output current | Applicable motor | Size | Brake unit |
| Single phase/Three phase :220V | ||||
| VFD580/586-0R7-S2B (T2B) | 5.6A | 0.75KW |
SIZE A |
Standard built-in |
| VFD580/586-1R5-S2B (T2B) | 8.0A | 1.5KW | ||
| VFD580/586-2R2-S2B (T2B) | 10.6A | 2.2KW | ||
| VFD580/586-4R0-S2B (T2B) | 17.0A | 4.0KW | SIZE B | |
| VFD580/586-5R5-S2B (T2B) | 25.0A | 5.5KW | ||
| VFD580/586-7R5-S2B (T2B) | 32.0A | 7.5KW | SIZE C | |
| VFD580/586-011-S2B (T2B) | 45.0A | 11KW | ||
| VFD580/586-015-S2B (T2B) | 60.0A | 15KW | SIZE D | |
| VFD580/586-018-S2B (T2B) | 75.0A | 18.5KW | ||
3. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!
3. The factory environment and manufacturing and testing process here
Veikong pay much attention to the manufacturing process and environment, each process of testing and producing have been monitored by professional workers here. Veikong, your trusted supplier!

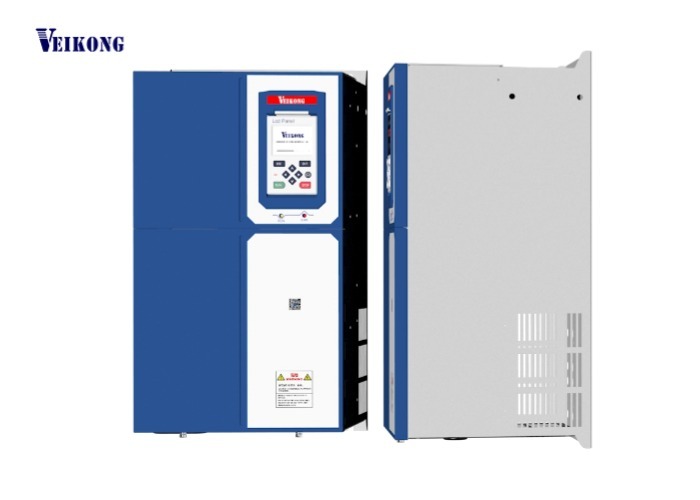

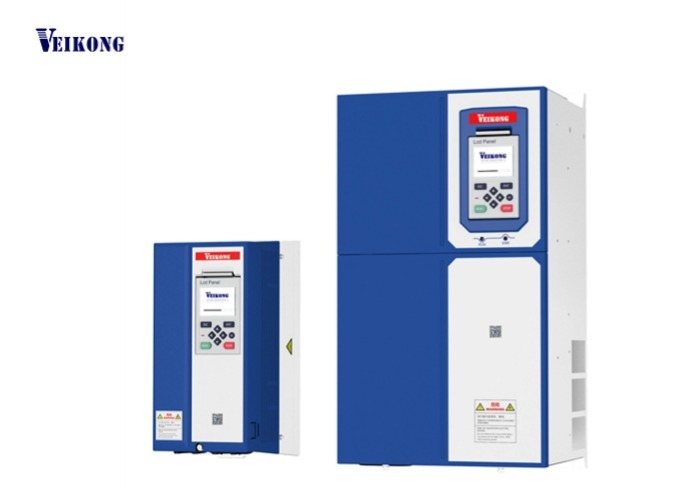

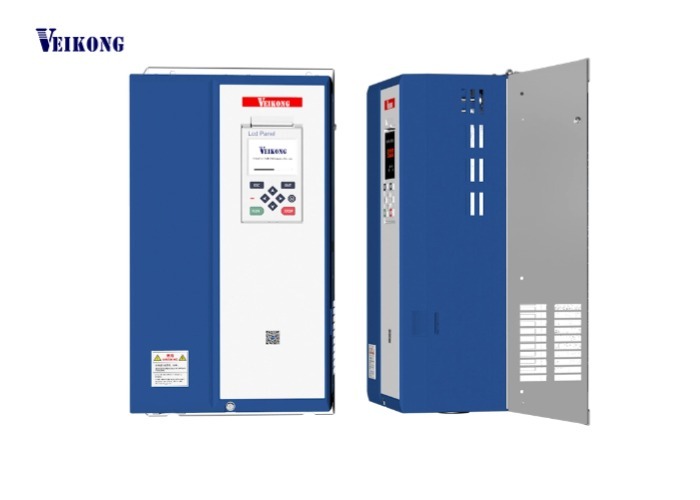

4. VFD580 product images
