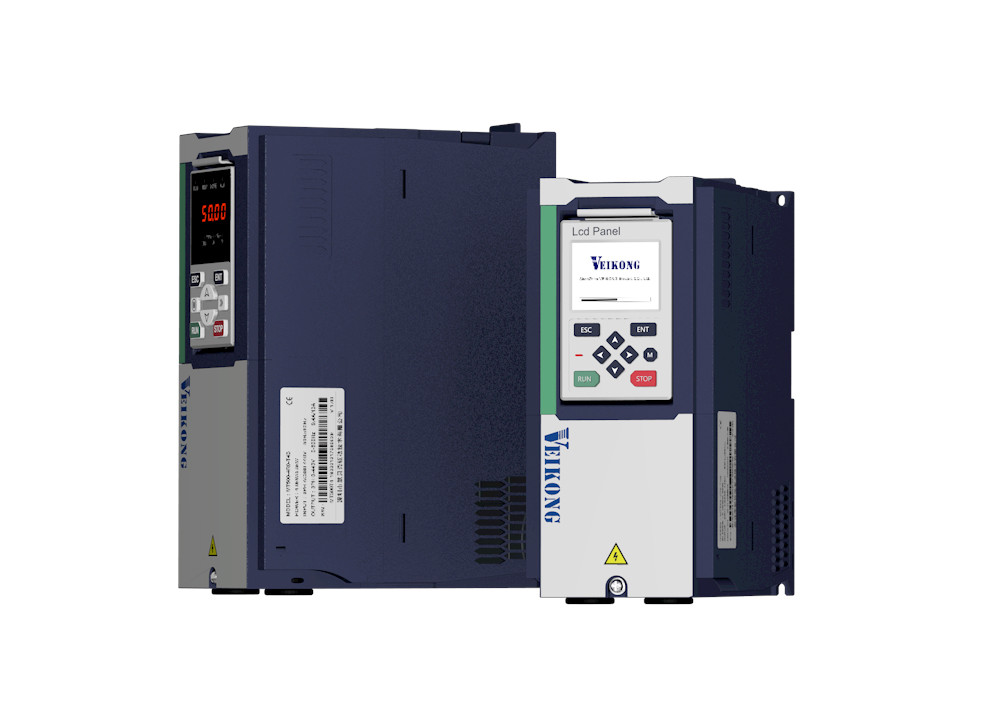

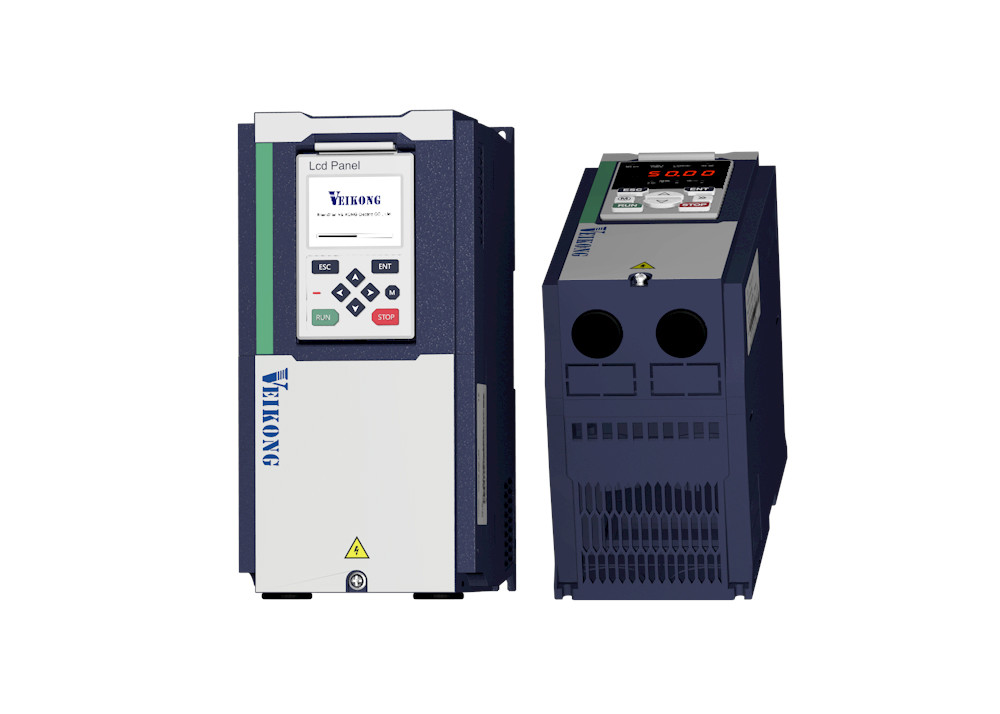

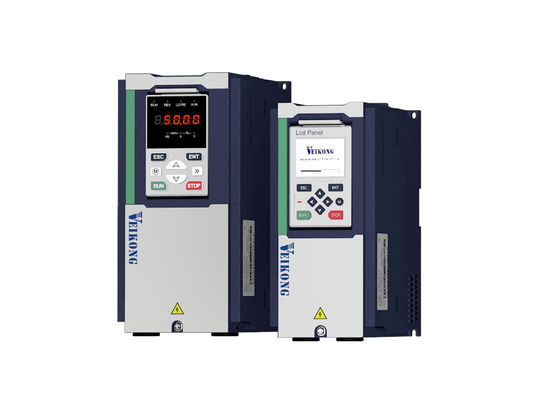

22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller
  • 22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller
  • 22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller
  • 22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller
Tempat asal Cina
Nama merek VEIKONG
Sertifikasi CE IEC
Nomor model VFD500
Dokumen <a target='_blank' style='color: #2323ff;text-decoration: underline;' href="//www.veikong.com/photo/veikong/document/99193/VEIKONG VFD500 series product brochure 20231004 E-file.pdf">VEIKONG VFD500 series produ...le.pdf</a>
Kuantitas min Order 1
Kemasan rincian Karton dan kotak kayu
Waktu pengiriman 3 hari, bergantung pada jumlah pesanan
Syarat-syarat pembayaran MoneyGram,Western Union,T/T,D/P,D/A,L/C
Menyediakan kemampuan 15000 pcs per bulan
Detail produk
Voltase 200V-240V, 380V-480V Rentang Daya 0,75kw-710kw
Menampilkan LED/LCD Frekuensi Masukan 50HZ/60HZ
Sikap Lebih rendah dari 1000m Modus kontrol V/F,SVC,VC
Deskripsi Produk

22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector

Product Features of Three Phase VFD

Tension control and torque mode control

Up to 200% starting torque at Ohz
Asynchronous motor control
Comparator and logic unit/controller

Sleeping function

Virtual DI function

Programmable delay unit
Motor Auto-tune (static and dynamic)
2 motor parameter groups
DC Injection brakingLCD keypad and shuttle keypad optional
Integral brake chopper (<30kW)
DC reacotor 18.5KW & above optional
2 PID Control optional
Energy saving function
Modbus RTU/RS485 built in
PC Tool Software
CANopen card optional
Profinet card optional
More compact to save space
Independent dust design

IO exentsional card

Multiple PG card


22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller 0

Technical Specifications


Item Specification
Input Input Voltage

1phase/3phase 220V:200V～240V

3 phase 380V-480V:380V～480V
Allowed Voltage fluctuation range -15%～10%
Input frequency 50Hz / 60Hz,fluctuation less than 5%
Output Output Voltage 3phase:0～input voltage
Overload capacity

General purpose application:60S for 150% of the rated current

Light load application:60S for 120% of the rated current
Control Control mode

V/f control

Sensorless flux vector control without PG card(SVC)

Sensor speed flux vector control with PG card (VC)
Operating mode Speed control,Torque control(SVC and VC)
Speed range

1:100 (V/f)

1:200( SVC)

1:1000 (VC)
Speed control accuracy

±0.5% (V/f)

±0.2% (SVC)

±0.02% (VC)
Speed response

5Hz(V/f)

20Hz(SVC)

50Hz(VC)
Frequency range

0.00～600.00Hz(V/f)

0.00～200.00Hz(SVC)

0.00～400.00Hz(VC)
Input frequency resolution

Digital setting: 0.01 Hz

Analog setting: maximum frequency x 0.1%
Startup torque

150%/0.5Hz(V/f)

180%/0.25Hz(SVC)

200%/0Hz(VC)
Torque control accuracy

SVC:within 5Hz10%,above 5Hz5%

VC:3.0%
V/f curve

V / f curve type: straight line, multi point, power function, V / f separation;

Torque boost support: Automatic torque boost (factory setting), manual torque boost
Frequency giving ramp

Support linear and S curve acceleration and deceleration;

4 groups of acceleration and deceleration time, setting range 0.00s ~ 60000s
DC bus voltage control

Over-voltage stall control: limit the power generation of the motor by adjusting the output frequency to avoid skipping the voltage fault;


Under-voltage stall control: control the power consumption of the motor by adjusting the output frequency to avoid yaw failure


VdcMax Control: Limit the amount of power generated by the motor by adjusting the output frequency to avoid over-voltage trip;

Vdc Min control: Control the power consumption of the motor by adjusting the output frequency, to avoid jump under-voltage fault
Carrier frequency 1kHz～12kHz(Varies depending on the type)
Startup method Direct start (can be superimposed DC brake); speed tracking start
Stop method Deceleration stop (can be superimposed DC braking); free to stop
Main control function Jog control, droop control, up to 16-speed operation, dangerous speed avoidance, swing frequency operation, acceleration and deceleration time switching, VF separation, over excitation braking, process PID control, sleep and wake-up function, built-in simple PLC logic, virtual Input and output terminals, built-in delay unit, built-in comparison unit and logic unit, parameter backup and recovery, perfect fault record,fault reset, two groups of motor parametersfreeswitching, software swap output wiring, terminals UP / DOWN
Function Keypad LED Digital keyboard and LCD keypad(option)
Communication

Standard:

MODBUS communication

CAN OPEN AND PROFINET( IN DEVELOPMENT)
PG card Incremental Encoder Interface Card (Differential Output and Open Collector), Rotary transformer Card
Input terminal

Standard:

5 digital input terminals, one of which supports high-speed pulse input up to 50kHz;

2 analog input terminals, support 0 ~ 10V voltage input or 0 ~ 20mA current input;

Option card:

4 digital input terminals

2 analog input terminals.support-10V-+10V voltage input
Output terminal

standard:

1 digital output terminal;

1 high-speed pulse output terminal (open collector type), support 0 ~ 50kHz square wave signal output;

1 relay output terminal(second relay is an option )

2 analog output terminals, support 0 ~ 20mA current output or 0 ~ 10V voltage output;

Option card: 4 digital output terminals
Protection Refer to Chapter 6 "Troubleshooting and Countermeasures" for the protection function
Environment Installation location Indoor, no direct sunlight, dust, corrosive gas, combustible gas, oil smoke, vapor, drip or salt.
Altitude 0-3000m.inverter will be derated if altitude higher than1000m and rated output current will reduce by 1% if altitude increase by 100m
Ambient temperature -10°C~ +40°C,maximum 50°C (derated if the ambient temperature is between 40°C and 50°C)Rated output current decrease by 1.5% if temperature increase by 1°C
Humidity Less than 95%RH, without condensing
Vibration Less than 5.9 m/s2 (0.6 g)
Storage temperature -20°C ~ +60°C
Others Installation Wall-mounted, floor-controlled cabinet, transmural
Protection level IP20
cooling method Forced air cooling
EMC CE ROHS

Internal EMC filter

Complies with EN61800-3

Category C3

3rd Environment

Product Application

22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller 1

22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller 2

22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller 3


22KW 30KW 37KW 45KW VFD Variable Frequency Drive 3 Phase Vector Controller 4

FAQ:


1. What voltage range can you support?

Single-phase 220v input, single-phase 220v output;
Single-phase 220v input, three-phase 220v output;
Three-phase 220v input, three-phase 220v output;
Single-phase 220v input, three-phase 380v output;


2. What is the standard of package?

Below 37kw, it's carton package; 45kw and above, it's wooden package.


3. Do you accept OEM business?

We accept OEM and ODM with your autherization.
