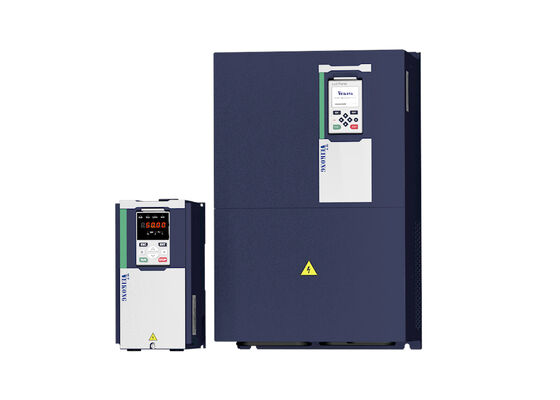

11kw 30kw Solar Pump Inverter with 99% Efficiency and Dry Run Protection for 3-Phase Pumps
| Tempat asal | Cina |
|---|---|
| Nama merek | VEIKONG |
| Sertifikasi | CE IEC |
| Nomor model | PKS500-PV |
| Kuantitas min Order | 1 |
| Kemasan rincian | daya kurang dari 45kw menggunakan Karton, mulai dari 45kw menggunakan kotak Kayu |
| Waktu pengiriman | tergantung pada jumlah pesanan |
| Syarat-syarat pembayaran | L/C,D/A,D/P,T/T,Western Union |
| Menyediakan kemampuan | 15000 pcs per bulan |
Detail produk
| Nama Produk | Inverter Pompa Tenaga Surya 11kw 30kw | Frekuensi Keluaran | 50/60Hz |
|---|---|---|---|
| Perlindungan | IP20 | Perlindungan lari kering | Mendukung |
| Efisiensi | Lebih dari 99% | Fungsi Khusus | PID |
Deskripsi Produk
Smarter MPPT, More Power: Unlocking Maximum Solar Efficiency in 3-Phase Pump Inverters
Solar pump inverter 11kw-30kw frequency drive for AC pump PMSM pump
Product Features
- Power range: 220V (0.75 - 75KW), 380V (0.75 - 250KW)
- DC/AC Input Compatible - supports DC and AC input simultaneously
- Multiple protection functions for enhanced system reliability
- Specifically designed for water supply applications with easy operation
- Advanced MPPT technology for maximum solar cell array efficiency
- Dry run protection prevents pump damage when water source is depleted
- Automatic dormancy at weak light (sunset) and reactivation at strong light (sunrise)
- Automatic water level control with dormancy at high reservoir level and restart at low level
- Optional LCD display and GPRS module support
- Supports LED/LCD keypad
VFD500-PV Three Phase Models
| Drive Model | Max DC Input Current (A) | Rated Output Current (A) | Applicable Water Pump (kW) |
|---|---|---|---|
| VFD500M-40T00150-PV | 9 | 3.7 | 1.5 |
| VFD500M-40T00220-PV | 12 | 5 | 2.2 |
| VFD500M-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500M-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500M-40T00750-PV | 30.6 | 17 | 7.5 |
| VFD500-40T00150-PV | 9 | 4.2 | 1.5 |
| VFD500-40T00220-PV | 12 | 5.6 | 2.2 |
| VFD500-40T00400-PV | 16.5 | 9.4 | 4 |
| VFD500-40T00550-PV | 23.9 | 13 | 5.5 |
| VFD500-40T00750-PV | 30.6 | 17 | 7.5 |
| VFD50040T01100-PV | 39.2 | 25 | 11 |
| VFD500-40T01500-PV | 49.0 | 32 | 15 |
| VFD500-40T01850-PV | 50 | 37 | 18.5 |
| VFD500-40T02200-PV | 60 | 45 | 22 |
| VFD500-40T03000-PV | 81 | 60 | 30 |
| VFD500-40T03700-PV | 90 | 75 | 37 |
| VFD500-40T04500-PV | 130 | 90 | 45 |
| VFD500-40T05500-PV | 150 | 112 | 55 |
| VFD500-40T07500-PV | 200 | 152 | 75 |
| VFD500-40T09000-PV | 250 | 176 | 90 |
| VFD500-40T11000-PV | 300 | 210 | 110 |
| VFD500-40T13200-PV | 360 | 253 | 132 |
| VFD500-40T16000-PV | 430 | 304 | 160 |
| VFD500-40T18500-PV | 500 | 360 | 185 |
| VFD500-40T20000-PV | 550 | 380 | 200 |
| VFD500-40T22000-PV | 620 | 426 | 220 |
| VFD500-40T25000-PV | 680 | 465 | 250 |
Product Reference
Optional Accessories
1. GPRS Module (supports 2G/3G/4G internet)
Enables water volume monitoring and inverter operation from anywhere at any time. Access real-time and historical data via web or Android APP for convenient remote monitoring. This easy-to-use platform simplifies solar pump system monitoring while reducing operation time and monitoring costs.

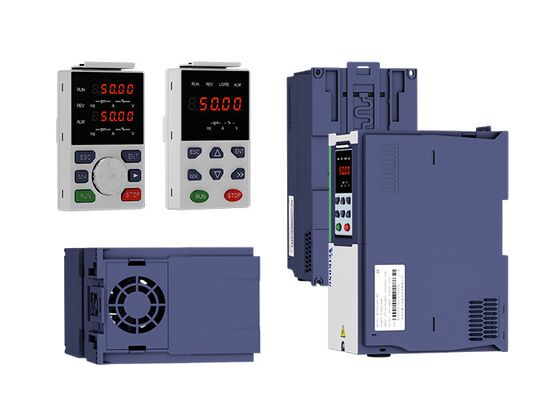

2. LCD Keypad
Standard inverters include LED keypads, with LCD keypads available as an optional upgrade. LCD keypads can monitor 4 parameters simultaneously (vs. single parameter display on LED keypads). Features detailed parameter explanations for user-friendly operation without manuals. Includes copy, update, and download functions - ideal for government projects and large farms.
