S6 series spindle-specific servo drive 2.2KW-11KW
  • S6 series spindle-specific servo drive 2.2KW-11KW
Tempat asal Cina
Nama merek VEIKONG
Sertifikasi CE IEC
Nomor model S6
Kuantitas min Order 1
Kemasan rincian Karton dan kotak kayu
Waktu pengiriman 7-15 hari, tergantung pada jumlah pesanan
Syarat-syarat pembayaran L/C,D/A,D/P,T/T,Western Union
Menyediakan kemampuan 15000 pcs per bulan
Detail produk
Jaminan 24 Bulan Jenis motor yang didukung Motor asinkron, magnet permanen, motor sinkron
Tingkat Perlindungan IP20 Suhu Penyimpanan -20℃—+60℃
Rentang kendali frekuensi 0—600.00HZ(S6),0-2000HZ(S6C dan S6M) Frekuensi daya masukan 50Hz/60Hz
Papan tombol LED standar, LCD opsional
Deskripsi Produk

1.Key Product Features


  • Strong weak‑magnetic speed‑up: Maximizes motor output in the weak‑magnetic region for high‑speed spindle applications.
  • Wide CNC compatibility: Supports analog pulse, EtherCAT (S6C), and M3 (S6M) bus communication interfaces.
  • Multiple encoder support: TTL differential, Tamagawa absolute, SinCos, SSI/BISS, with optional frequency division output.
  • Powerful self‑learning: Fast and accurate motor parameter identification for high commissioning efficiency and third‑party motor matching.
  • High overload capacity: 150% rated current for 60s; 200% rated current for 8s.
  • Precise position control: Supports semi‑closed loop and full closed loop; positioning accuracy ±1 pulse.
  • Compact structure: 46%–55% smaller than the previous S5 series; separated motor/spindle encoder ports for easy wiring.
  • Independent air duct design: Prevents dust and reduces failure risk; high‑airflow long‑life fan lowers internal temperature.
  • Reliable hardware: Integrated IGBT module, overcurrent / short‑circuit protection, strong anti‑EMI performance.

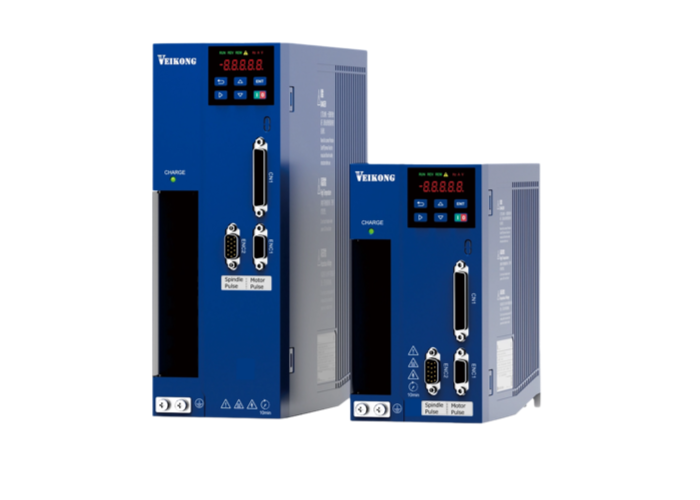

S6 series spindle-specific servo drive 2.2KW-11KW 0

2.Company Profile


Shenzhen VEIKONG Electric Co., Ltd. is a well‑established high‑tech enterprise focusing on R&D, manufacturing, and sales of low‑ and medium‑voltage inverters and solar pumping inverters. With more than 20 years of professional management and a strong R&D team, we are among the earliest independent AC drive manufacturers in China. We integrate high‑efficiency MPPT, SPWM, sensorless vector control, and vector & torque control technologies, reaching international advanced levels and being comparable with top brands from Europe, the United States, and Japan. We strictly follow ISO9001 quality management and our products hold CE and IEC certifications. Committed to customer‑centric solutions, we provide reliable products and full technical support for global industrial customers.

3.Typical Applications
  • CNC lathe, CNC milling machine, machining center
  • CNC vertical lathe, CNC grinding machine, CNC boring machine
  • Turn‑mill composite machine, gantry machine tool

4.Why Choose VEIKONG S6?

  • Stable, reliable, and compact design
  • High compatibility with mainstream CNC systems
  • Easy installation, debugging, and maintenance
  • CE and IEC certified; global quality standard
  • Professional technical support and after‑sales service

5.Technical Specifications


(1)Power Range


  • 220V models: 2.2kW – 5.5kW
  • 380V models: 4.0kW – 11kW

(2)Input Voltage


  • 220V class: 3‐phase 200–240V
  • 380V class: 3‐phase 380–480V
  • Allowable voltage fluctuation: –15% ~ +10%
  • Input frequency: 50/60Hz (±5%)

(3)Control Performance


  • Overload: 150% 60s / 200% 8s
  • Control modes: Speed control, torque control (SVC/VC), position control (VC)
  • Frequency range: 0–600Hz (S6); 0–2000Hz (S6C/S6M)
  • Acceleration/deceleration: Linear & S‑curve; 4 groups, 0.00s–60000s

(4)Main Functions


  • Spindle orientation, full closed‑loop control, parameter backup/restore, complete fault logging
  • Communication: Modbus (S6); EtherCAT (S6C); M3 (S6M)
  • Interface: Dual encoder ports (motor + spindle)

(5)Environment


  • Operating temperature: 0°C–40°C (derate above 40°C)
  • Storage temperature: –20°C–60°C
  • Humidity: <95% RH (non‑condensing)
  • Altitude: 0–3000m
  • Protection: IP20
  • Cooling: Forced air cooling
